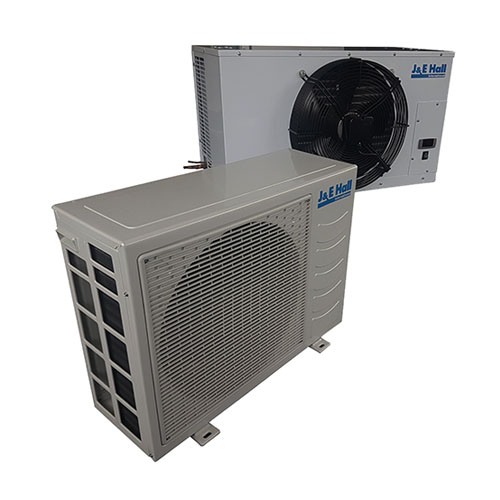

JCC cellar cooler range provides cost effective and reliable units designed to maintain temperatures required for beer and wine cellars. Pre-charged with 1.80kg of R410a - Additional charge 20g per metre
Please Note: Equipment and required materials cost will vary per installation. Please call us on 01254 888108 for estimated costs of your complete installation, costs will be confirmed upon completion of a satisfactory site survey before we install the equipment. This cellar cooling unit is also available for purchase without installation, please call one of our advisors for the latest price.
System Specifications:
Cooling Capacity
Quick Selection @12.7°C
Above Ground: 70m³
Below Ground: 120m³
Cooling Capacity kW @32°C Ambient
@4°C - 5.29
@8°C - 5.53
@10°C - 5.65
@12.7°C - 5.82
@16°C - 6.03
Liquid Pipe Size: 3/8"
Suction Pipe Size: *5/8"
Maximum Pipe Run: 25m (8m Rise)
Power Supply: 230v / Single Phase / 50Hz
Full Load Amps (FLA): 12.9amps
Power to: Indoor
Inter Connecting Cable: 3 Core
Fuse Rating: 32amps
Indoor Unit Specification (Evaporator)
Height: 545mm
Width: 902mm
Depth: 370mm
Weight: 38kg
Unit Airflow: 2560m³/H
Noise Level: 47 dB(A)
Lock Rotor Amps (LRA): N/A
Outdoor Unit Specification (Condenser)
Height: 756mm
Width: 855mm
Depth: 328mm
Weight: 65kg
Unit Airflow: 2463m³/H
Noise Level: 34 dB(A)
Lock Rotor Amps (LRA): 65
